Air Leakage Measurement


ASTM E 283-91 (Reapproved 1999) "Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors Under Specified Pressure Differences Across the Specimen"

Air Leakage Rate for a Sliding Door

Principle of Measurement

The test consists of sealing a test specimen into or against one face of an air chamber, supplying air to or exhasuting air from the chamber at the rate required to maintain the specified test pressure difference across the specimen, and measuring the resultant air flow through the specimen.


click for image

Sliding Door

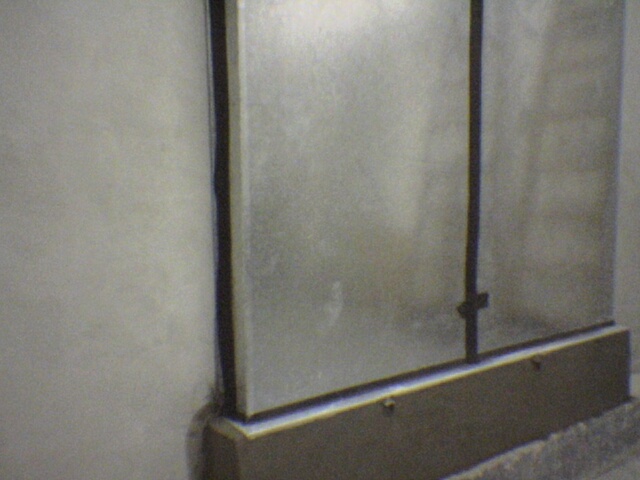

Sealing the test specimen


click for image

click for image

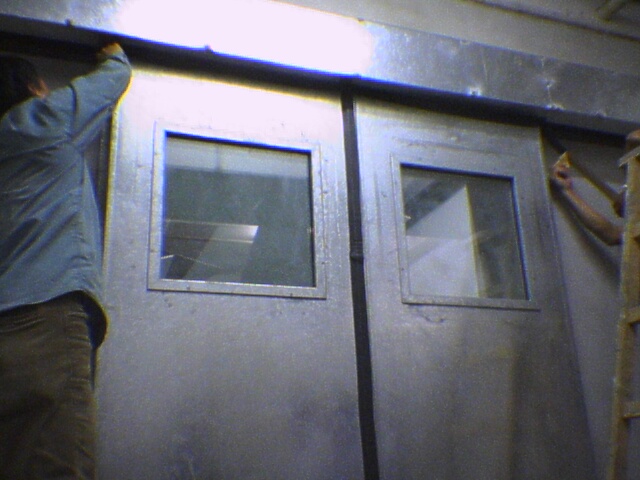

Sealing the test specimen

Measurement Devices


click for image

Measurement of Pressure and Air-flow Rate

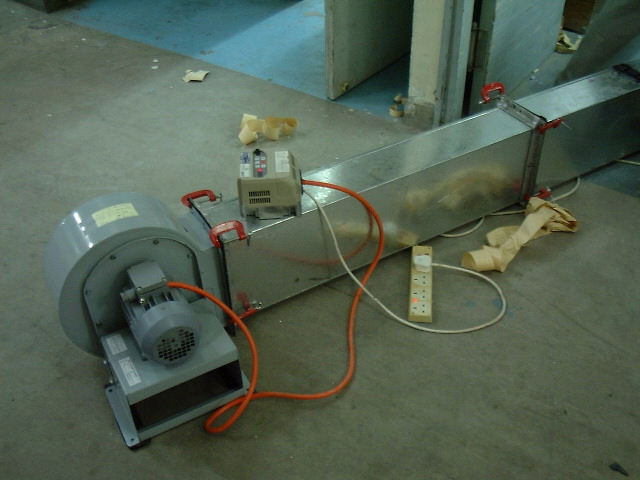

High performance air supply fan
build up and maintain the indoor pressure

Measuring the pressure difference

Job Reference

1.    First Top Engineering
Air Leakage Rate Measurement for Sliding Door System
