Impact Insulation Measurement 撞擊聲隔音性能測試
Complied
with 試驗方法及宣告標準
|
|
Impact
Sound Pressure Test according
to ISO 140-6, ISO 717-2 (Ln,w) |
|
|
Impact
Insulation Class Test according
to ASTM E492, ASTM E989 (IIC) |
|
|
Reduction
of Impact Sound Pressure Level Test according
to ISO 140-8, ISO 717-2 (rLn) |
|
|
Improvement
in Impact Insulation Class due to floor covering according to ASTM
E2179, ASTM E989 (rIIC) |
|
|
Field
Impact
Sound Pressure Test according
to ISO 140-7, ISO 717-2 (L’n,w) |
|
|
Field
Impact Insulation Class Test according
to ASTM E1007, ASTM E989 (FIIC) |
|
|
根據國家標準
GB/T 19889.6 及
GB/T 50121試驗所得的撞擊聲壓級
(Ln,w) |
|
|
根據國家標準
GB/T 19889.7 及
GB/T 50121試驗所得的現場撞擊聲壓級
(L’n,w) |
|
|
根據國家標準
GB/T 19889.8 及
GB/T 50121試驗所得的撞擊聲壓級改善量
(rLn) |
Laboratory
facility
實驗室設施
Fo Tan Branch 火炭實驗室 (HOKLAS Accredited香港認可處所認可之實驗室)
|
Location: 地點: |
About
10-minute's walk from Fo Tan MTR station 由火炭港鐵站步行約10分鐘 |
|
|
Room
volume: 測試房容積: |
Source
Room聲源室
=
50m3 Receiving
Room接收室
=
80m3 |
|
|
RC
Slab thickness: 樓板厚度: |
150mm±10mm |
|
|
Test
standard: 試驗方法: |
ISO
140-6, GB/T 19889.6 (Ln,w) ISO
140-8, GB/T 19889.8 (rLn) ASTM
E492 (IIC) ASTM
E2179 (FIIC) |
|
|
|
||
Instrument
測量設備
To
ensure the highest accuracy and precision of our measurement, our
equipment is complied with the requirements of accuracy classes 0 or 1
defined in IEC 651 and IEC 804.
聲壓級測量設備的準確度滿足IEC
651 和
IEC 804中規定的0型或1型准確度要求。
|
Equipment |
Fulfilled
International Standard
|
|
Real-
Time Frequency Analyzer |
ü |
|
Free-
field Microphone |
ü |
|
Microphone
Preamplifier |
ü |
|
Sound
Level Calibrator |
ü |
|
Standard
Tapping Machine |
ü |
Test

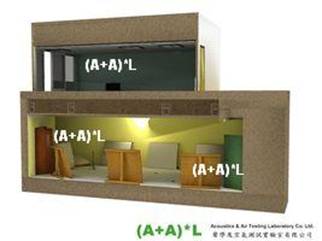

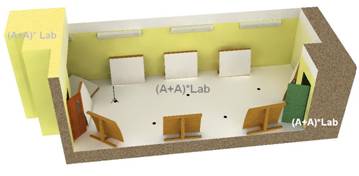

Arrangement 測試安排
|
Impact
Sound Pressure (Ln) / Impact
Insulation Class
(IIC) is given by: 撞擊聲壓級計算方法如下: Ln
or IIC = L + 10 log
(A/A0) |

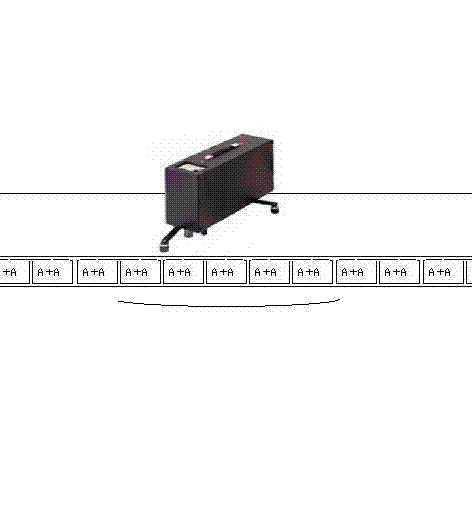

A
standard tapping machine is placed in operation on a test specimen
that forms a horizontal separation between two rooms, one directly
above the other. The
transmitted impact sound characterized by the spectrum of the
space-time average one-third octave band sound pressure levels
projected by the tapping machine is measured in the receiving room
below. Reverberation
time inside the receiving room is also measured for room
absorption correction. |
|
測試件安裝在聲源室與接收室之間的洞口內,開動放於測試件上的標準撞擊器,
聲音經由測試件進入接收室內。 傳聲器於接收室中進行收音。 量度接收室的混響時間作為吸音量的修正用途。 |
|
|
Reduction
of Impact Sound Pressure Level (rL) /
Improvement
in Impact Insulation Class due to floor covering
(rIIC)
is given by: 撞擊聲壓級改善量計算方法如下: rL
or rIIC
= L0 - Ln |
Sound
pressure levels inside the receiving room are captured under TWO
situations: 1)
L0,
Bare floor (NO floor covering), 2)
Ln,
With floor coverings (e.g. carpet.) |
|
在以下情況下進行撞擊測試: 1)
L0, 實驗室樓板 2)
Ln, 安裝測試件後 測試件的撞擊聲壓級改善量是以上兩者之差數。 |
|
|
Standard 試驗方法 |
A
single number descriptor 宣告標準 |
|
Impact
Sound Pressure (Ln) /
Impact
Insulation Class
(IIC) 撞擊聲壓級 Ln
or IIC = L + 10 log (A/A0) |
ISO
140-6 (Lab test) |
Weighted
normalized impact (Ln,w) |
|
ASTM
E492 (Lab test) |
Impact
Insulation Class (IIC) |
|
|
GB/T
19889.6 (Lab test) |
撞擊聲壓級
(Ln,w) |
|
|
ISO
140-7 (On-site test) |
Weighted
normalized impact sound pressure (Ln’,w) |
|
|
ASTM
E1007 (On-site test) |
Field
Impact Insulation Class (FIIC) |
|
|
GB/T
19889.7 (On-site test) |
現場撞擊聲壓級
(Ln’,w) |
|
|
Reduction
of Impact Sound Pressure Level (rLn) /
Improvement
in Impact Insulation Class due to floor covering
(rIIC)
撞擊聲壓級改善量 rLn
or rIIC
= L0 - Ln |
ISO
140-8 (Lab test)
|
Reduction
of impact sound pressure level / Improvement of impact sound
insulation (rL) |
|
ASTM
E2179 (Lab test) |
Improvement
in Impact Insulation Class due to floor covering (rIIC) |
|
|
GB/T
19889.8 (Lab test) |
撞擊聲壓級改善量
(rL) |
Certify
Your Buildings Specimen 為產品認證
Once
finished laboratory measurement, a detail report of the measurement, and a
Certification that certified the Impact Insulation Class (IIC / FIIC),
Weighted normalized impact sound pressure (Ln,w / Ln’w),
Reduction of impact sound pressure level (rL)
or Improvement in Impact Insulation Class due to floor covering (rIIC)
of the tested buildings specimen will be issued. People can refer to this
Certification to consult the acoustics performance of your building
products. No more estimation, true data is here.
所有的測試件於完成測試後,
均會發出一份具有公信力的測試報告以表示其隔音性能,客戶可以更了解產品的特性。
|
|
|
|
